Flo-Grid®

Permeable Grid Structure

For strong and robust floors with high traffic and heavy loads!


Flo-Grid® is a durable and environmentally friendly product made from 100% recycled plastic. The heavy duty design can withstand up to 247 tonnes per square metre, making it suitable for various trafficable surface applications, including access roads, helipads and light aircraft runways.

It permeable design allows for road edge water infiltration, permeable paving, raised walkways and other applications. It provides a non-slip and stable surface for  trails pathways, and ramps, meeting accessibility requirements.

Applications

  • Road Edge (Water Infiltration)
  • Permeable Paving
  • Raingardens
  • Parking Lots
  • Pathways & Trails
  • Accessibility Ramps
  • Raised Walkways

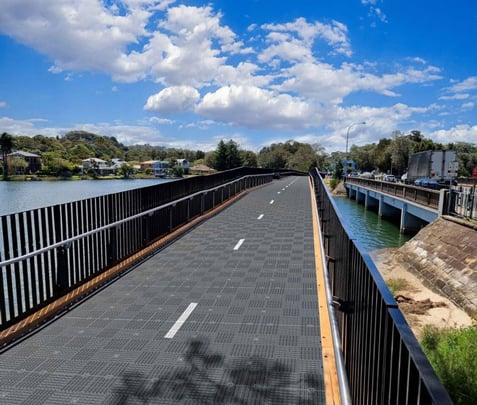

Narrabeen



Flo-Grid® can be used in any situation where heavy loaded traffic areas and surfaces, access roads are required.

This includes access roads, fire trails, pathways and mining roads and trails. Also, be used for the construction of swales to collect rainwater and direct water to surface infiltration areas such as Atlantis underground infiltration channel.

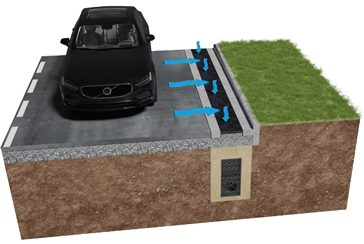

Road-Edge-Car-1



Specifications

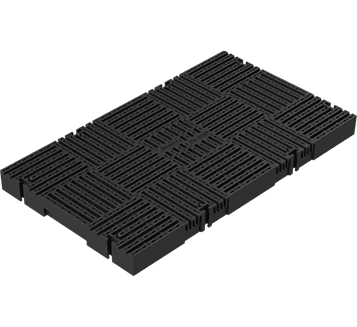

Flo-Grid-1

Flo-Grid® Specifications
Part Number SWM-FG-48
Width 400m
Height 48mm
Length 685mm
Pieces per m2 3.65
