Aerobic Treatment Units

Department of Health WA-approved, Coerco's Aquarius® Wastewater Systems provide reliable wastewater treatment and recycling for domestic or resource and construction industries. Reuse treated water for irrigation, landscaping, orchards, and more, or safely disperse it into leach drains and soak wells.

Coerco Aerobic Treatment Units for Efficient Wastewater Treatment


Coerco offers a range of Aquarius® ATUs designed to effectively process wastewater in different industries such as resource, construction, commercial and residential sites. This treatment allows the recycled water to be safely used for irrigating garden beds, orchards, soak wells and or dispersals into leach drains, meeting the stringent standards of the Department of Health, WA.

Our O-2 NR and O-3 models go a step further by reducing phosphorous and nitrogen levels in the water, making them particularly beneficial for water catchment areas, environmentally sensitive zones, and in meeting local shire regulations. These models are recognised for their nutrient-retentive capabilities, which are crucial for environmental conservation.

Moreover, the Aquarius® O-3 stands out as our most eco-friendly option. It employs ozone in its final disinfection stage, even more effective than chlorine, leaving oxygen as its only bi-product. 

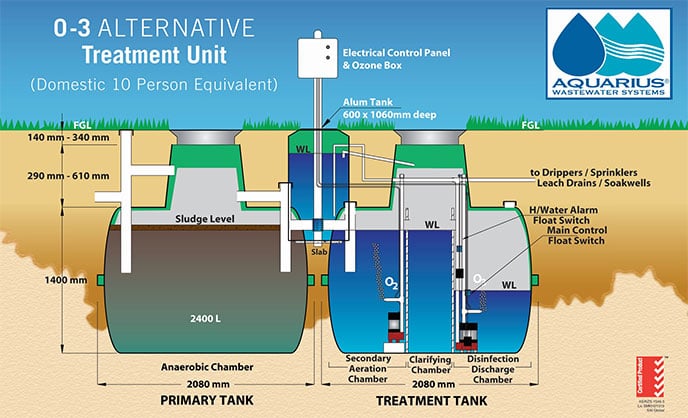

Aquarius-residential-ATU



Treatment Process

  O-3 O-2 NR O-2
Primary Tank
Retains the solid uses aerobic and anaerobic bacteria to breakdown the BOD5 levels in the sewage

Alum Tank
Doses the clarifying chamber of the treatment tank with alum. Alum acts as a flocculent to remove the nutrients and suspended solids and settle them to the bottom of the tank for further aerobic bacteria breakdown

Treatment Tank
Secondary/Aeration Chamber
Incorporates aeration to further break down BOD5 and nitrates

Clarifying/Discharge Tank
The Clarifying Chamber provides a settling and clarifying period for the water prior to discharge

Discharge Chamber
The Discharge chamber contains the Discharge pump to pump the treated water out to irrigation or other disposal methods.

Ozonation Pump
Ozone is a powerful disinfectant, many times more effective than chlorine and kills bacteria.

DoH WA ATU Water Quality Criteria
<20mg/L BOD5
<30mg/L suspended solids
<10 E.coli/100ml
<3mg/L Ozone concentration
<1mg/L TP
<10mg/L TN

Aerobic Treatment Units

Number of Bedrooms
1-5 Bedrooms O-3 ATU O-2 NR ATU O-2 ATU
6-9 Bedrooms O-3 6KL ATU O-2 NR 6KL ATU O-2 6KL ATU

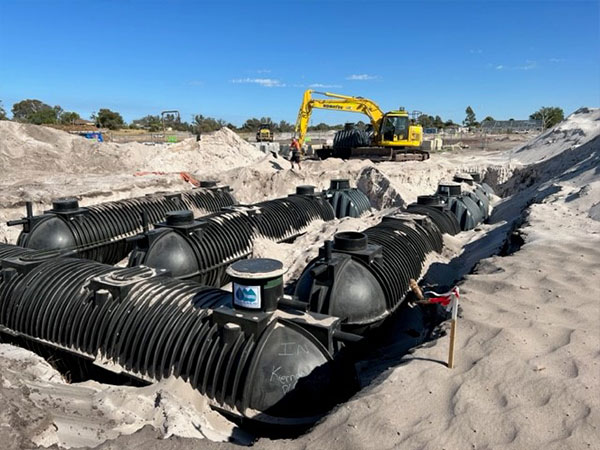

Commercial Standard or Custom Designed Commercial Systems. Please speak to our sales consultant.

Specifications

  O-3 O-2 NR O-2
System Features
Poly/Duralen or Concrete Tank Construction

Nutrient Retentive
(Phosphorous reduction)

Ozone Disinfection
Recycles all wastewater through irrigation into gardens, orchards, etc
Supplied complete with irrigation components, electrical components and pumps
Footprint required approx 6m x 2.5m x 2m**
Low Energy use
Irrigation Area
Above Ground Spray Irrigation
Sub-surface Dripper Irrigation
Irrigation area in sandy soil conditions - *150m2
Other Disposal Option
Leach Drains / Soakwells / Aquasafe Drains

Maintenance
Service calls per year DoH WA requirements
2 2 2
Manufacturers Warranties
Poly/Duralen Plastic Tank 15 years
Submersible Pumps 1 Year (Or as per manufacturer's warranty period)
Irrigation and Electrial components 1 year
Approvals
Fully approved by the Department of Health

Australian Standards approved AS/NZS 1546.3
Why choose Aquarius
Wholly owned West Australian Company

Manufactured in Western Australia
Extensive Support Network covering all of WA
Local agents fully trained and registered with Department of Health WA

*Subject to local authority approval
