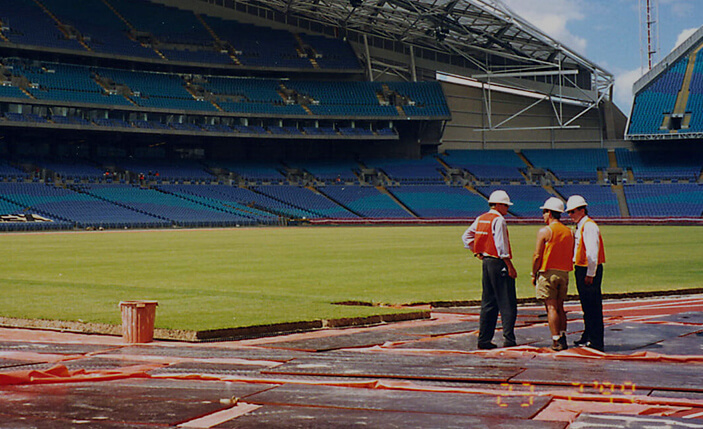

Flo-Cell_Hero-Image-Mobile

Stormwater Flo-Cell®

The pioneer and original infiltration cell since 1986

Flo-Cell®


The Flo-Cell® range is a versatile product suitable for many applications including the drainage of sports fields, civil works, retaining walls and landscaping applications. The Flo-Cell® is also ideally suited for WSUD (Water Sensitive Urban Design) applications and provides and ideal use for increasing the permeability of ground areas which reduces overland flow and facilitates groundwater recharge.



Benefits

  • Rapid Drainage: Efficiently drain excess water while retaining an optimal moisture level. Ideal for promoting plant growth in large parks and grass areas.
  • Lightweight: No cranes or lifting equipment required.
  • Strong Structural Design: The Flo-Cell® products can be installed horizontally or vertically and can be easily configured to meet project-specific requirements
  • Quick Installation: Faster installation than traditional aggregate drainage systems.
  • High Infiltration rate
  • Biological contaminant resistant

Applications

  • Sustainable Urban Water Design
  • Grass parking areas

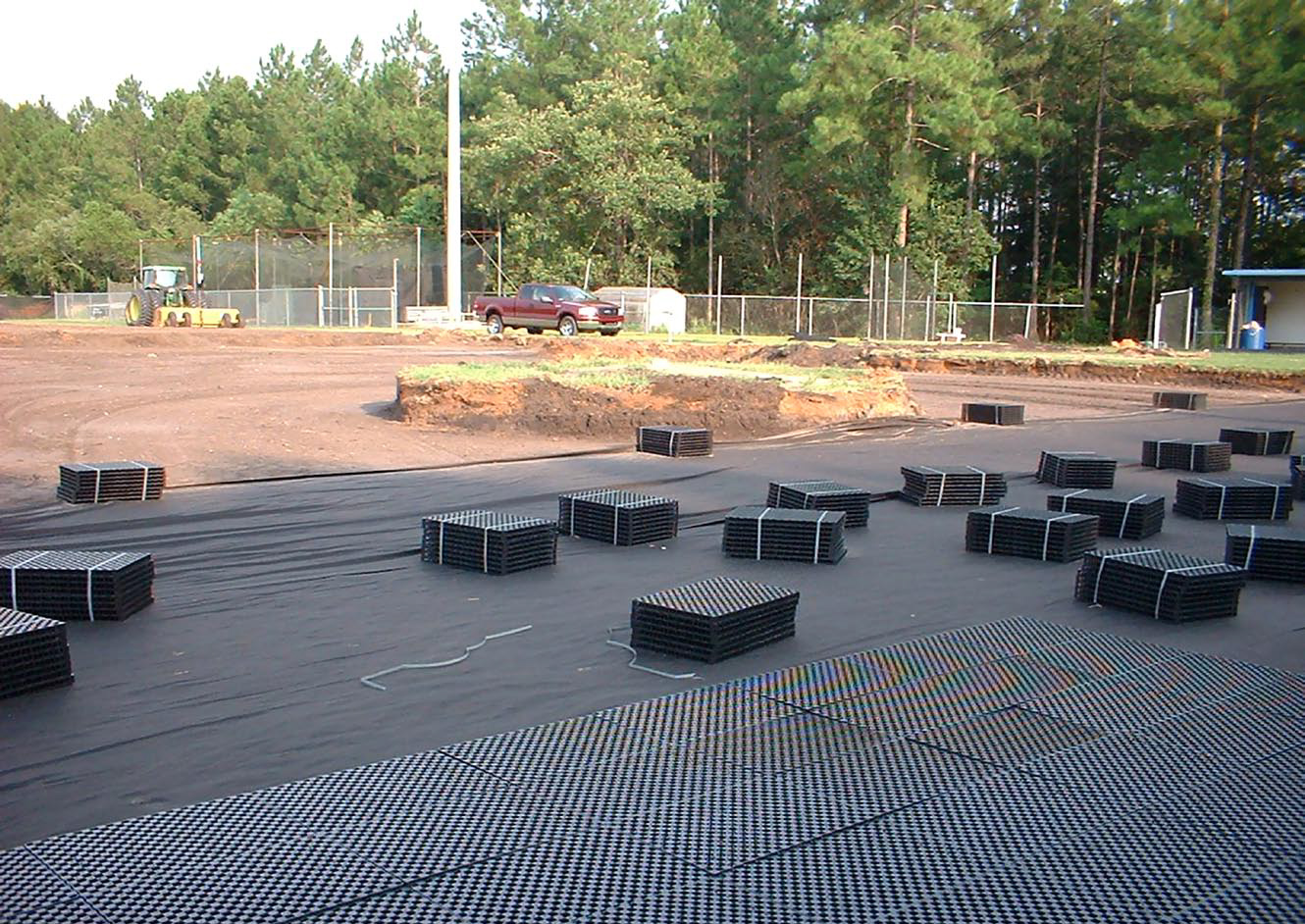

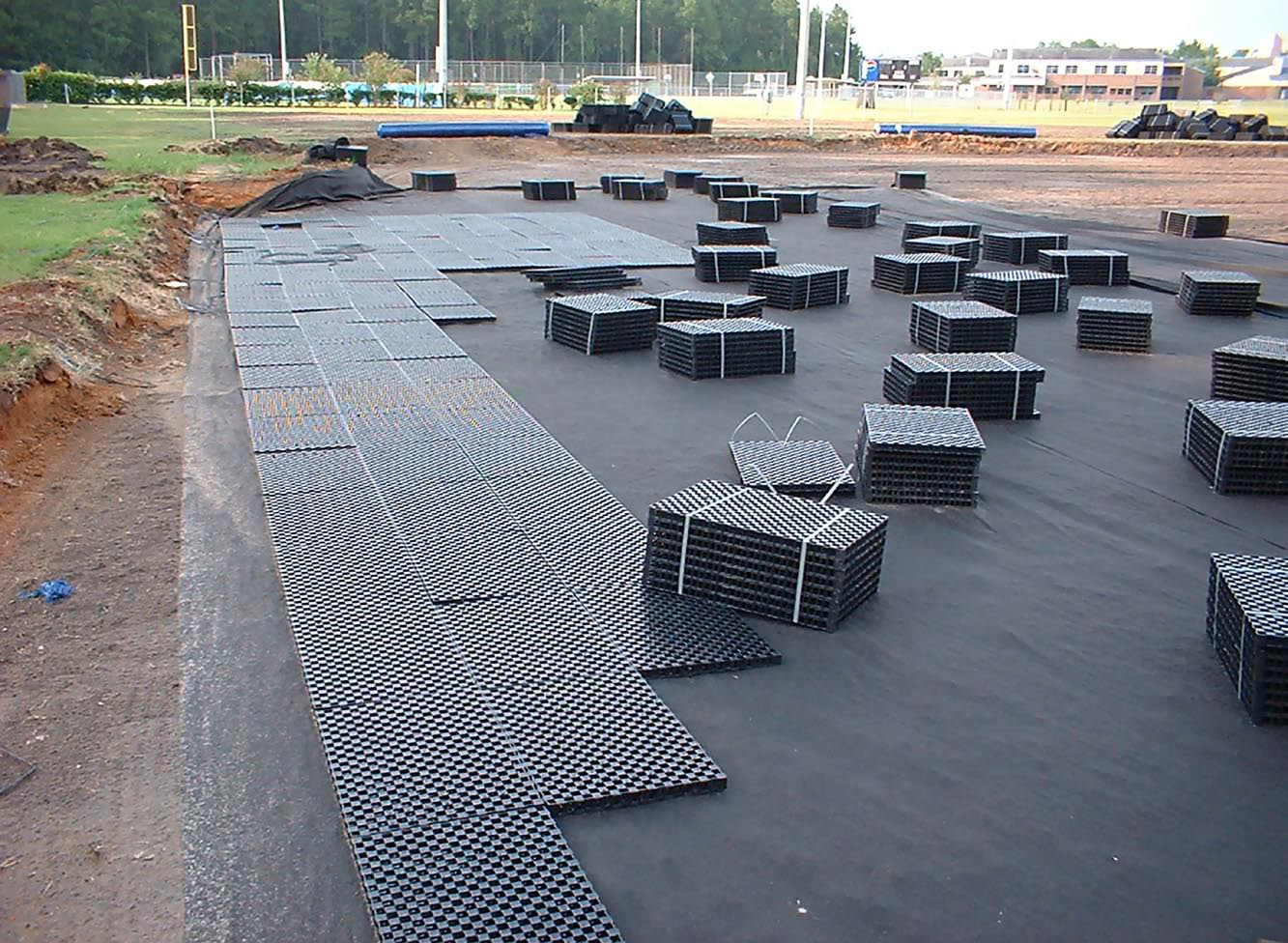

  • Sport Field Drainage
  • Golf Course Drainage

Flocell-50

Flo-Cell® (SWM-FC-50)
Code SWM-FC-50
Part Size (H) 50mm (W) 575mm (L) 575mm | (H) 1.97" (W) 22.64" (L) 22.64"
Weight Per Square Metre 4.95kg
Flow Rate 2.56 Litres/Sec/m @ 1% gradient
Pieces Per Square Metre 3
Material 85% Recycled Polypropylene 15% Propriety Selected Materials
Colour Black
Chemical & Biological Resistance Unaffected by molds, algae, soil-bourne chemical, bacteria and bitumen
Service Temperature -10°C - 70°C (14F° - 158F°)
Approximate Material Lifespan 100 years + with no ultra violet exposure

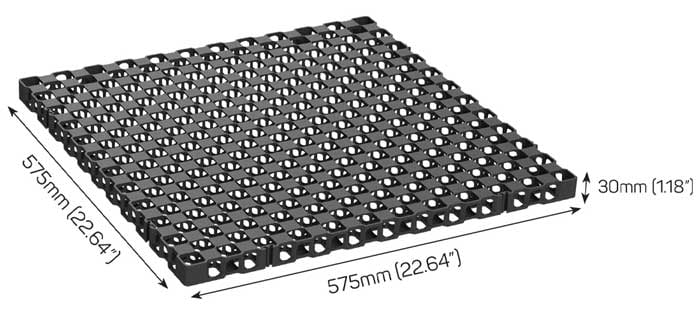

Flocell-30

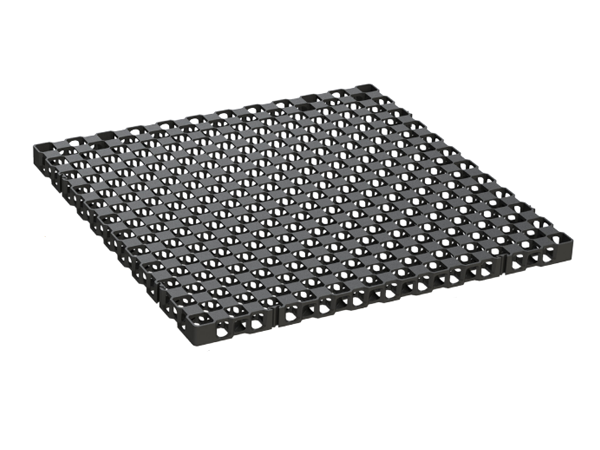

Flo-Cell® (SWM-FC-30)
Code SWM-FC-30
Part Size (H) 30mm (W) 575mm (L) 575mm | (H) 1.18" (W) 22.64" (L) 22.64"
Weight Per Square Metre 1.95kg
Flow Rate 1.41 Litres/Sec/m @ 1% gradient
Pieces Per Square Metre 3
Material 85% Recycled Polypropylene 15% Propriety Selected Materials
Colour Black
Chemical & Biological Resistance Unaffected by molds, algae, soil-bourne chemical, bacteria and bitumen
Service Temperature -10°C - 70°C (14F° - 158F°)
Approximate Material Lifespan 100 years + with no ultra violet exposure

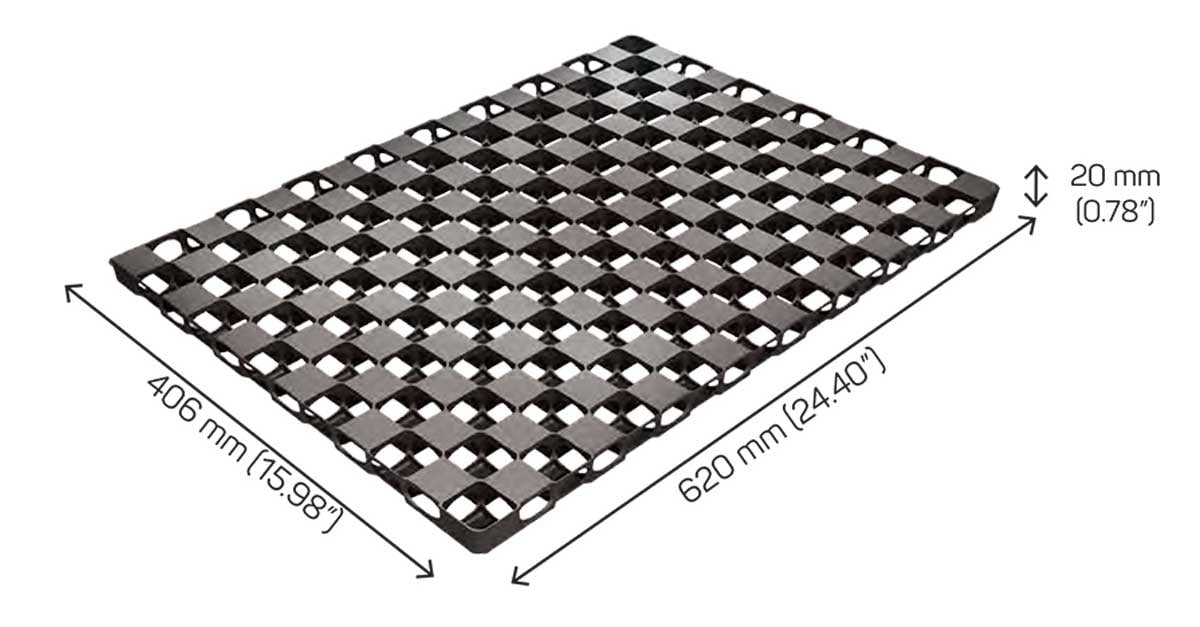

Flocell-20

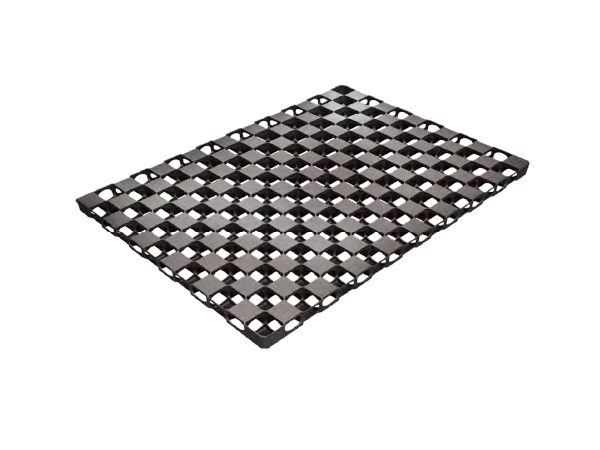

Flo-Cell® (SWM-FC-20)
Code SWM-FC-20
Part Size (H) 20mm (W) 406mm (L) 620mm | (H) 0.78" (W) 15.98" (L) 24.40"
Weight Per Square Metre 2.2 kg (0.45 lbs/ft2)
Flow Rate In-Plane Flow Rate @ 1% gradient (BS EN ISO:12958)
Pieces Per Square Metre 3.98
Material 85% Recycled Polypropylene 15% Propriety Selected Materials
Colour Black
Chemical & Biological Resistance Unaffected by molds, algae, soil-bourne chemical, bacteria and bitumen
Service Temperature -10°C - 70°C (14F° - 158F°)
Approximate Material Lifespan 100 years + with no ultra violet exposure



Get A FREE Consult

Main Applications of the Flo-Cell®

Basement
Basement

Wall Drainage

Planter-Box
Planter Box

Roof-Garden
Roof Garden

Podiums

Void-Fill
Void Fill

Void-Fill-2
Void Fill

Trench
Trenoh

Sportsfield

Artificial-Turf
Artificial Turf

Sportfields

Concrete-Slab
Concrete Slab

Underdrain
