Wall Infiltration and Insulation System

Perfect Solution for Leak Control

Rapid Drainage

The Flo-Wall® range is ideal for the rapid drainage of saturated ground. The Flo-Wall® range is suited for applications including underground car parks, basements, retaining walls and seepage cut-off trenches.

High Strength

The Flo-Wall® range features high compressive strength that will not crush over time ensuring long term drainage performance.

Hydrophilic Geotextile

The Flo-Wall® range are prefabricated products wrapped with a high quality Italian made geotextile with hydrophilic properties for effective drainage that does not require a head of pressure to perform.

Unlimited Length

The Flo-Wall® range can be easily connected together to form the lengths required for the project. Each Flo-Wall® is provided with an overlap allowance of geotextile to allow each connection to be appropriately sealed with tape.




  • Retaining walls
  • Foundation walls
  • Basements
  • Underground parking
  • Bridge abutments and abutments
  • Civil works
  • Tunnels in areas that require hydrostatic pressure relief


Shotcrete Application

"Save time & labour while getting the job done right the first time"


The product is ideal for shotcreting saving time and labour costs through rapid installation and thereby reducing labour requirements.

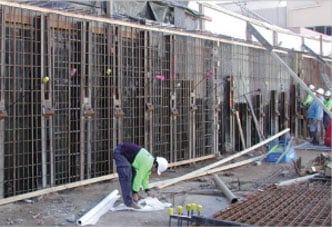

Steel reinforcement is placed over Atlantis wall panels

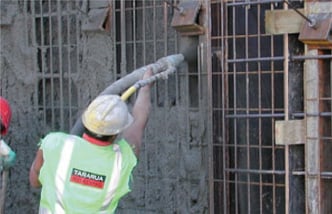

Tradesman applying shotcrete over steel reinforcement and Atlantis Wall Panels
