Flo-Vault®

  • Class leading compressive strength: 40t/m²
  • Efficient design for great transport savings
  • High infiltration rate

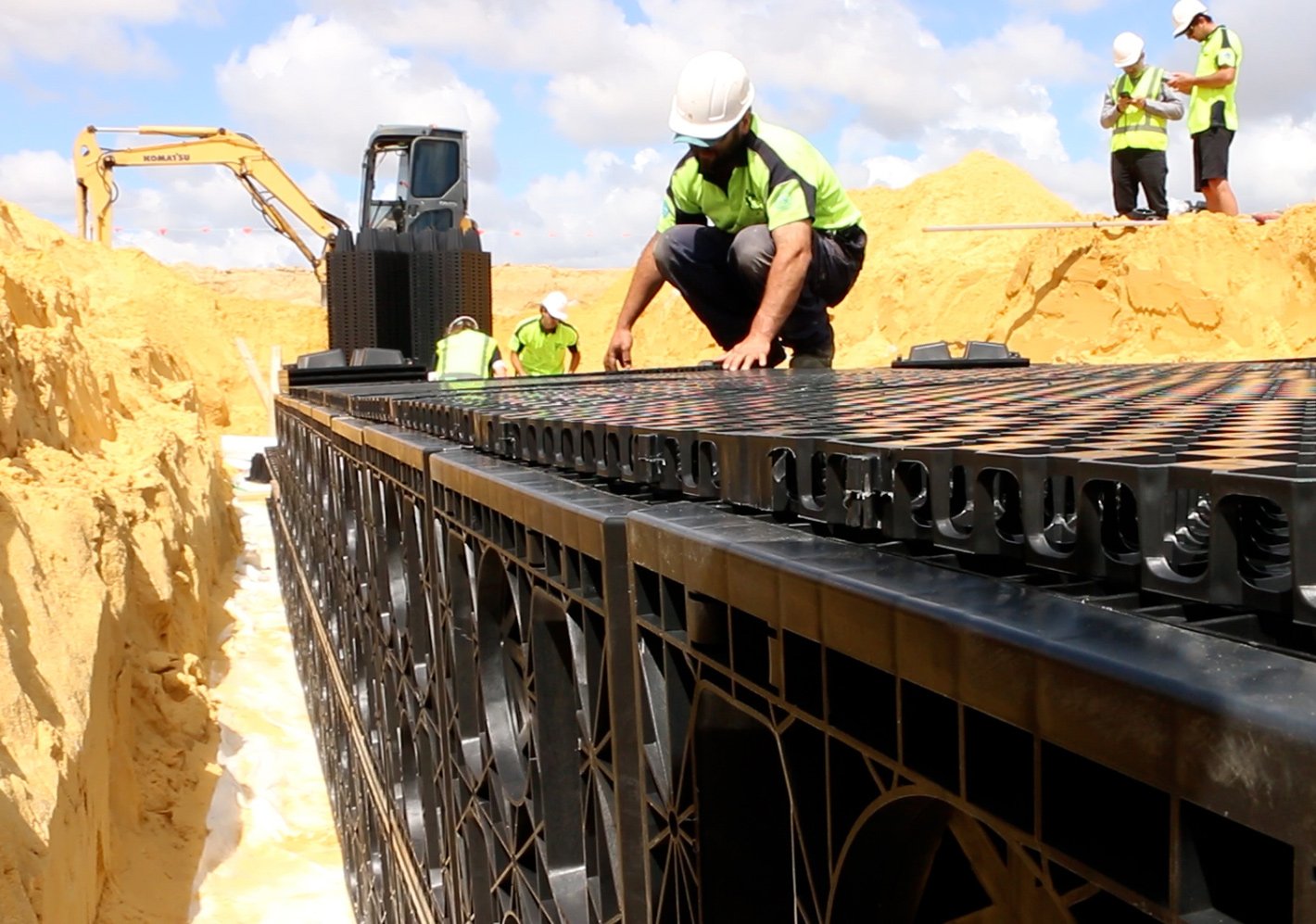

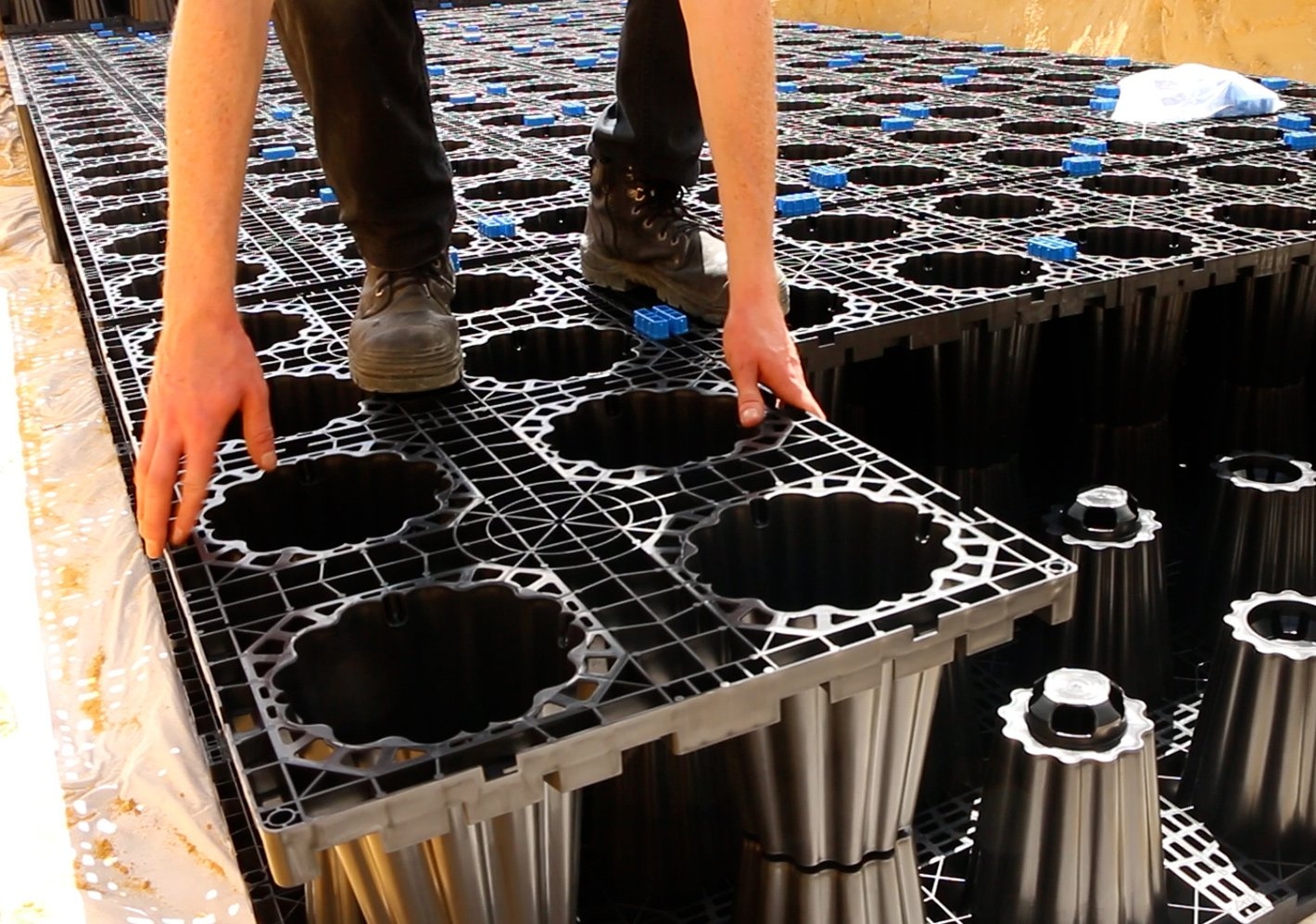

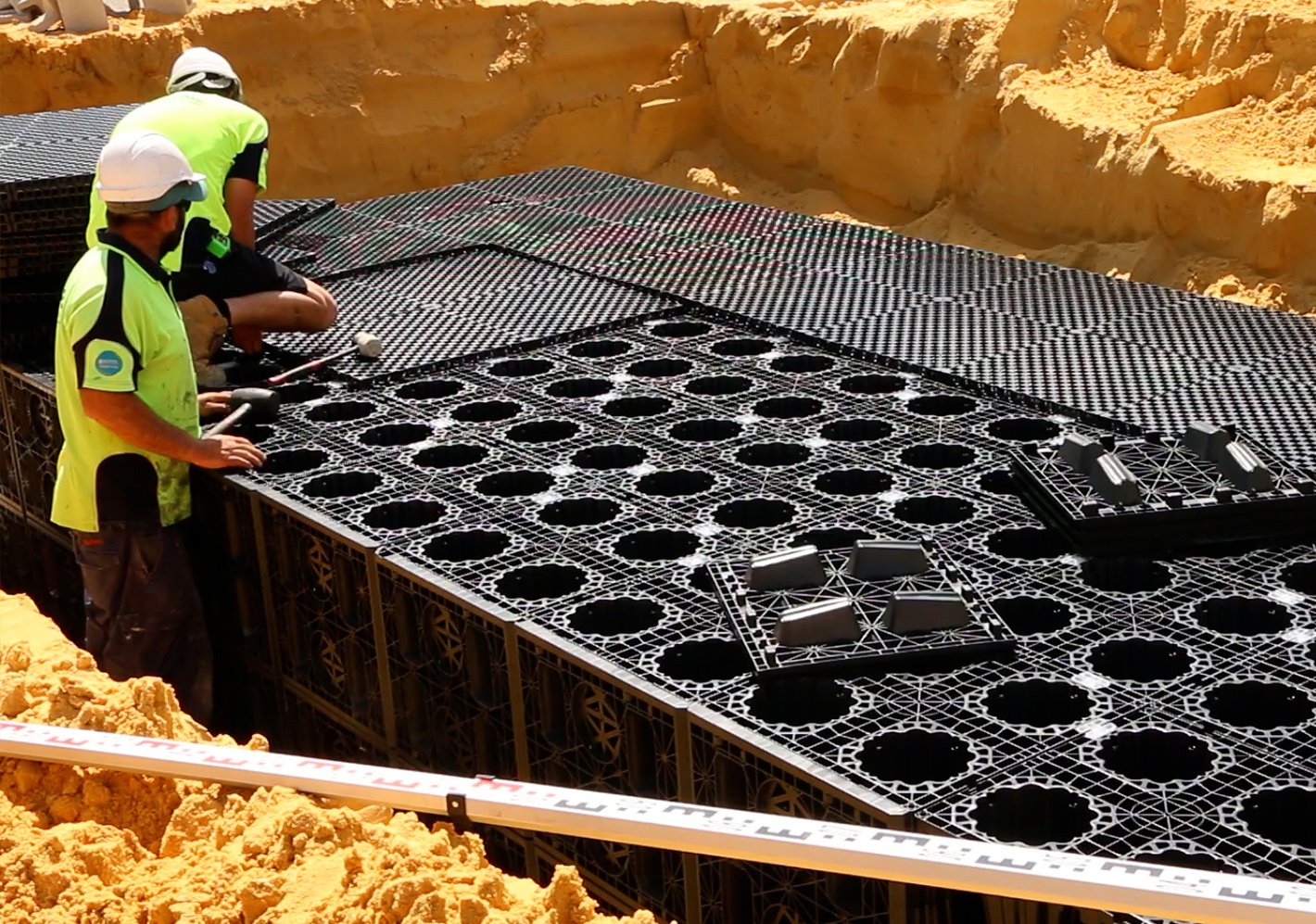

  • Significant savings on assembly time: up to 300m³/day with 4 people
  • Allows for camera inspection and high pressure jetting

Stormwater Management System

Explore our engineered approach to stormwater management — durable, modular systems designed to control runoff and manage water effectively below ground. Built for long-term performance with minimal maintenance.

PRODUCT NAMEDESCRIPTION
Flo-Vault®
High-strength modular stormwater tank for infiltration, detention or reuse. Lightweight, easy to install, 95% void ratio, and built for underground performance. Made from recycled polypropylene with 100+ year lifespan and high load capacity.

Flo-Vault®

The Flo-Vault® by Coerco represents a groundbreaking approach to underground water storage, offering a structural, lightweight, modular tank system tailored for various applications. Its modular design not only simplifies the construction of tanks to any desired volume but also ensures adaptability to meet the unique demands of specific site conditions.

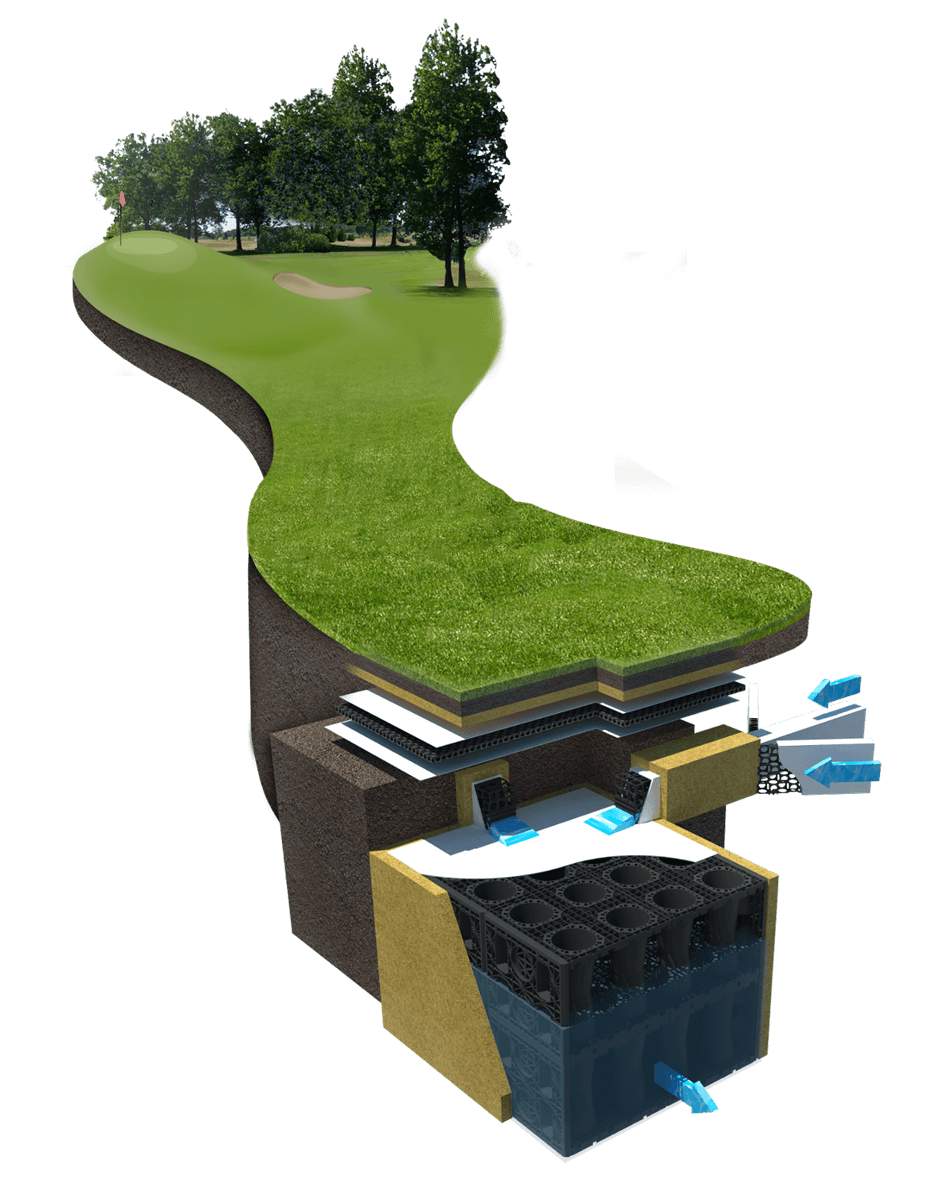

Flo-Vault Application

Applications

  • Infiltration

  • Detention

  • Retension / reuse

  • Light structural fill

  • Landscape Void fill

Flo-Vault


Product Specification

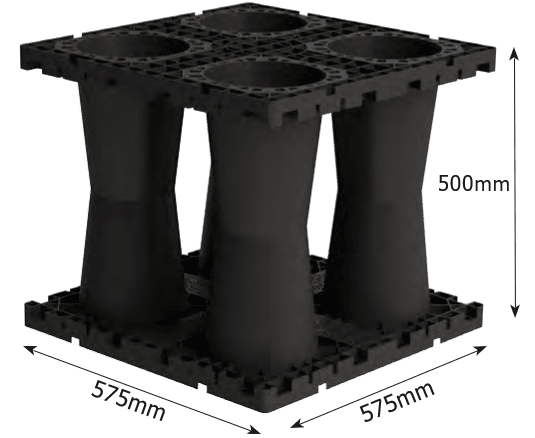

Part SizeH: 500mm, W: 575mm, L: 575mm
Ultimate Strength40 tonnes / m² (Ultimate strength till failure, not yield)
Gross Volume0.165 m³
Storage Capacity157.05 litres
Modules per m³ Footprint6.06 modules per m³
Pieces Per Square Metre3
Void Ratio95%
Material95% Recycled Polypropylene, 5% Proprietary Selected Materials
ColourBlack
Chemical & Biological ResistanceUnaffected by molds, algae, soil-borne chemicals, bacteria, and bitumen
Service Temperature-10° C - 70° C (14° F - 158° F)
Approximate Material Lifespan100 years + with no ultraviolet exposure

In-Depth Look

Flo-Vault
